Name: 8x4 Highway Dump Truck
Brand: SHACMAN
SKU: 145584620

Product Introduction

8x4 Highway Dump Truck uses a high-quality engine with good power, high economy, and cost savings compared to similar products. Our product adopts noise reduction technology, which has good sealing performance and comfortable driving. It can travel for a long distance, can well meet the transportation needs, and is one of the best choices for the transportation industry.

Product feature and application

1. The wide and heightened cab provides comfortable driving and better visibility.

2. Lightweight configuration of the whole vehicle, with lighter overall weight.

3. Strengthen the 435 press-welded bridge, which has a higher carrying capacity than competing similar axles and high reliability.

4. Equipped with two-stage air filter to ensure the quality of intake air.

5. The overall speed ratio meets the needs of national highway transportation, and the fuel saving effect is the best.

Product details

● It adopts needle roller bearings, which makes the steering more stable and the operation more comfortable.

● Our 8x4 Highway Dump Truck uses high-quality engines, high torque, low emissions, strong power and good economy.

● High-quality bridge reduction, strong carrying capacity and high reliability.

● Surrounding instrument, beautiful and comfortable, good safety and sealing, flexible and convenient operation.

● The air filtration efficiency is high, which effectively protects the engine.

● The entire product has undergone enhanced design and passed authoritative crash tests, greatly improving safety performance.

● High-quality gearbox, multiple gears, easy to select and shift gears.

Product parameter

Platform	X3000
Drive type	8X4
Vehicle Weight	GVW: 11 tons

	GCW：90 tons
Frame	850×320（8+7）mm
Wheelbase	1800+3575~4375+1400
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16 ton single or double reduction
	Gear ratio: 4.769 – 5.92
Suspension	Multi leaf spring front and rear setup
Tires	12.00R20
Fuel tank	400 - 700 liter aluminum or steel tank
Cab	Standard
	Lengthened flat roof
Configuration	Hydraulic driver seat, four point hydraulic suspension cab, electrically controlled automatic thermostatic air conditioner, electric window, ordinary rear-view mirror, manual cab turnover, telescopic shaft control, ordinary air filter, metal bumper, hinged upper pedal, water tank protective barrier, tail lamp protective barrier

▲The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

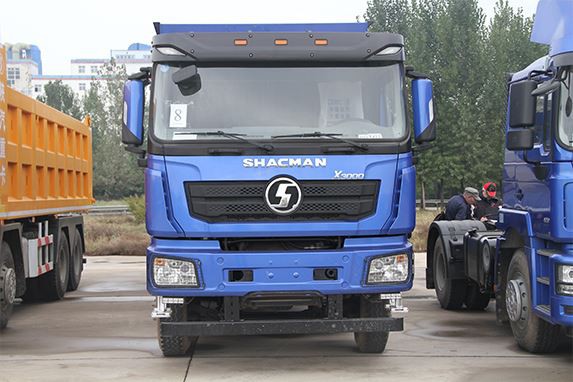

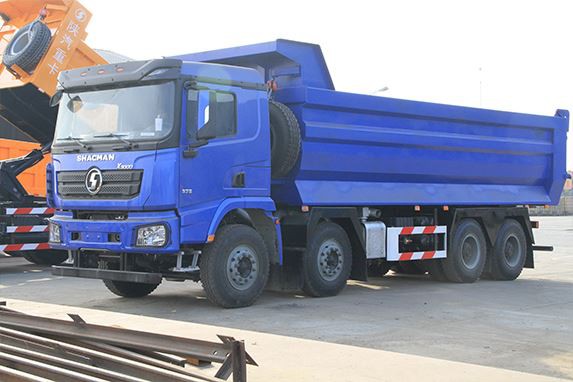

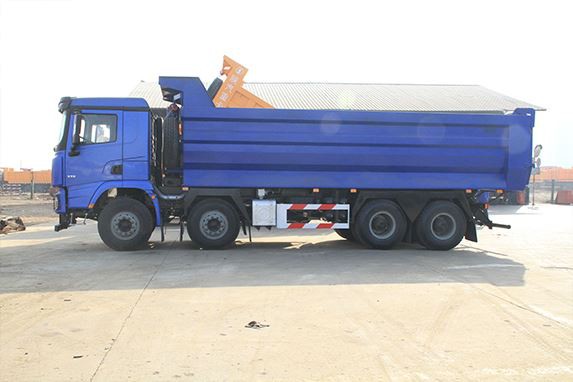

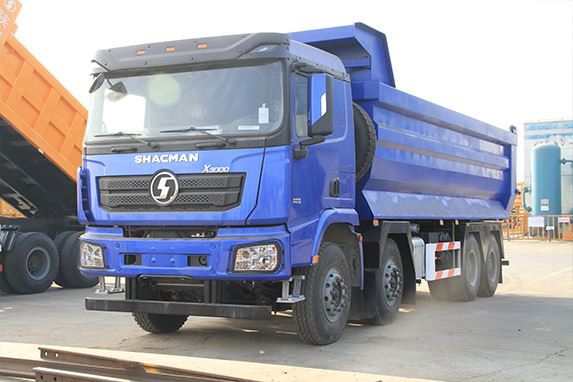

Product Images
