Name: 6x4 Heavy Duty Dump Truck
Brand: SHACMAN
SKU: 145472639

Product Introduction

6x4 Heavy Duty Dump Truck is one of the popular models we sell. It has a large user group with high performance, high comfort and high efficiency. Our product will increase the distance from the ground to ensure their high passability in complex road conditions. It uses a high-strength frame with a stable overall structure and good bending and torsion resistance.

Product feature and application

Because 6x4 Heavy Duty Dump Truck can automatically tip over a certain angle for unloading, it has the advantages of saving unloading time and labor. In civil engineering, it often works in conjunction with excavators, loaders, belt conveyors and other construction machinery to form a loading, transporting, and unloading production line to carry out the loading, unloading and transportation of earth, sand, and bulk materials.

Product details

● 6x4 Heavy Duty Dump Truck uses high-quality motor bearings and regulators to ensure the best performance of the car.

● Our product adopts a high chassis design, which greatly improves the passing ability of the vehicle in the face of complex road conditions.

● It shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used transportation vehicle.

● Our product has excellent heat dissipation design, heat dissipation and adaptability to the thermal environment is very good.

Product parameter

Platform	H3000
Drive type	6X4
Vehicle Weight	GCW：50 tons

Frame	850×300（8+7）mm
Wheelbase	3175~4575+1400
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 430 PS
		Torque: 1400 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 430 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16 ton single or double reduction
	Gear ratio: 4.769 – 5.92
Suspension	Multi leaf spring front and rear setup
Tires	315 / 8R22.5
Fuel tank	300 - 700 liter aluminum or steel tank
Cab	Standard
	Lengthened flat roof
Configuration	Hydraulic driver seat, four point hydraulic suspension, no sleeper, rod type rear-view mirror, electric window lifter, electric air conditioner, manual cab turnover, flexible shaft control, ordinary air filter, metal bumper, two-stage boarding pedal, 165ah maintenance free battery, headlamp protective barrier and tail lamp protective barrier

▲The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

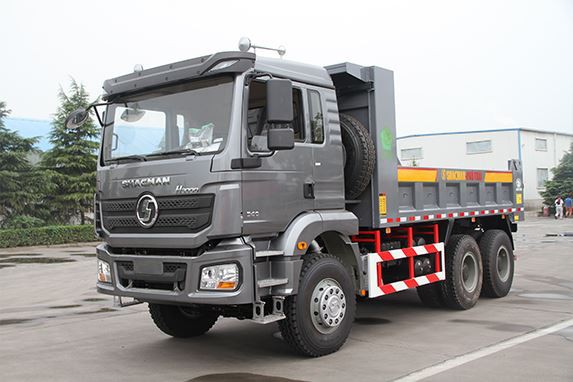

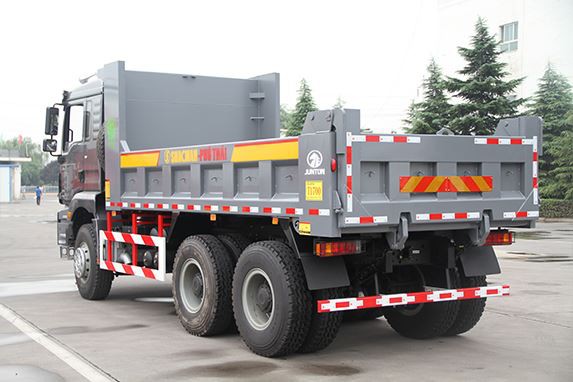

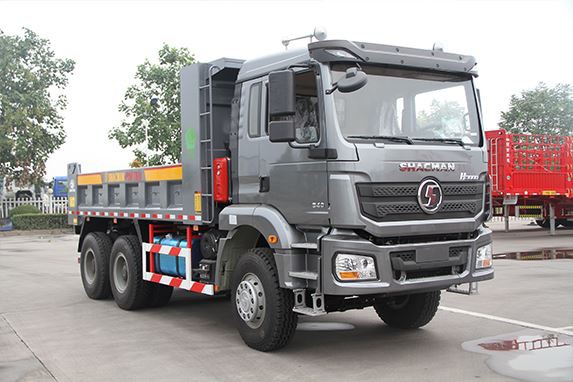

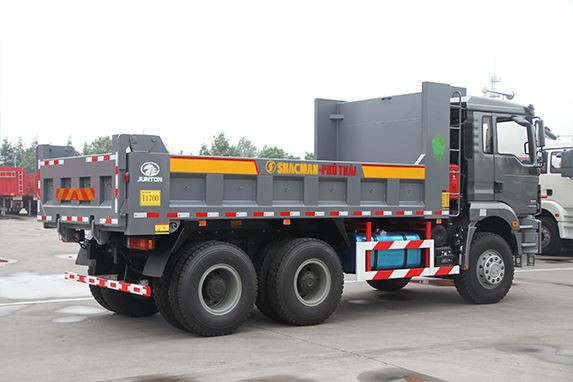

Product Images
