Name: 6x4 Highway Dump Truck
Brand: SHACMAN
SKU: 145583001

Product Introduction

6x4 Highway Dump Truck is an excellent choice for the transportation industry. The front axle of this dump truck is equipped with a horizontal balance bar to ensure the stability of the vehicle. At the same time, the chassis is adjusted to avoid the impact of the oil pan and the fuel tank water tank due to the chassis being too low. This is a mature product, and at the same time it is more popular because of its convenient maintenance.

Product feature and application

Optimize the structure design to make it have the characteristics of high strength, low center of gravity and stable operation. The frame is made of materials with excellent hardness, which greatly increases the load-bearing strength. Lifting is not easy to overturn, and it is safer.

Product details

● This product is not easy to roll over during transportation, and it will reduce the damage to tires, leaf springs and frame.

● 6x4 Highway Dump Truck adopts a frame structure formed by integral welding, which can balance the strength, rigidity and toughness of the frame, and is not easy to deform.

●Adopt high-quality materials, strong impact resistance, and balanced load on each axis.

Product parameter

Platform	X3000
Drive type	6X4
Vehicle Weight	GVW: 9.8 tons

	GCW：50 tons
Frame	850×300（8+7）mm
Wheelbase	3175~4575+1400
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16 ton single or double reduction
	Gear ratio: 4.769 – 5.92
Suspension	Multi leaf spring front and rear setup
Tires	12.00R20
Fuel tank	400 - 700 liter aluminum or steel tank
Cab	Standard
	Lengthened flat roof
Configuration	Hydraulic driver seat, four point hydraulic suspension cab, electrically controlled automatic thermostatic air conditioner, electric window, ordinary rear-view mirror, manual cab turnover, telescopic shaft control, ordinary air filter, metal bumper, hinged upper pedal, water tank protective barrier, tail lamp protective barrier

▲The above data is for reference only, you can consult the local salesman for details.

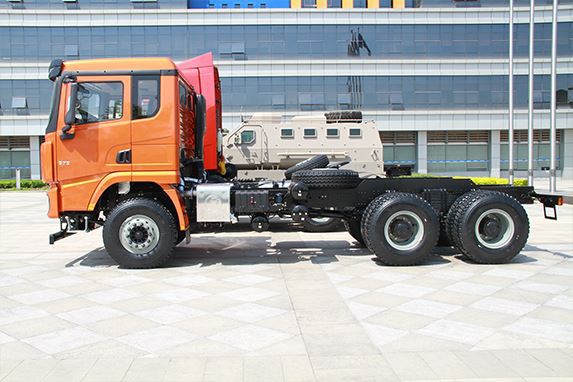

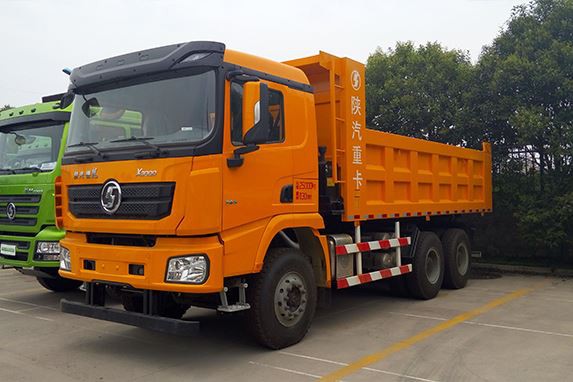

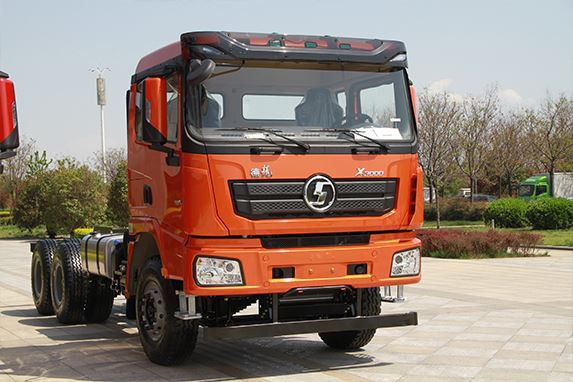

Product Images
