Name: 4x2 Flatbed Tractor Truck
Brand: SHACMAN
SKU: 145366779

Product Introduction

4x2 Flatbed Tractor Truck adopts the narrow body cab of the German MAN TGS model, which features leading design technology and manufacturing technology of Europe, with the advantages of better lateral adaptability and trafficability. It has a low main plane of the frame cargo platform, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel, etc. It is equipped with mass balance blocks between the front and rear steel plate springs, which can make the deflection of the front and rear steel plate springs vary equally, so that the front and rear axles are subject to balanced forces, etc.

Product feature and application

4x2 Flatbed Tractor Truck's whole vehicle adopts advanced computer-aided design software to optimize design flexibility and variety, and design the frame bearing surface according to user requirements to meet the transportation of various special cargoes. Its structure is reasonably designed to fully reduce the weight of the carriage under the condition of satisfying the load, the structure is simple and applicable, easy to disassemble, reducing the investment cost for users and creating more profit value.

Product parameter

Platform	H3000
Drive type	4X2
Vehicle Weight	GVW：7.5 tons
	GCW：50 tons
Frame	(940-850)×300(single 8) mm
Wheelbase	3600 mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2200 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 500 PS
		Torque: 1400 Nm – 2200 Nm
Transmission	FAST 12 speed manual

Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 5.5 - 7.5 ton
	Rear axle: MAN 11.5 - 13 ton single or double reduction
	Gear ratio: 3.364 – 4.769
Suspension	Few leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	400 - 700 liter aluminum or steel tank
Cab	Lengthened high roof
	Lengthened flat roof
	Standard
Standard Configuration	Air suspended driver seat, four point air suspension, rod mirror, electric air conditioner, electric window lifter, manual cab turnover, telescopic shaft control, ordinary air filter, ordinary 50 saddle, corrugated mounting plate, highway bumper, fixed upper pedal, split fender, 165ah maintenance free battery

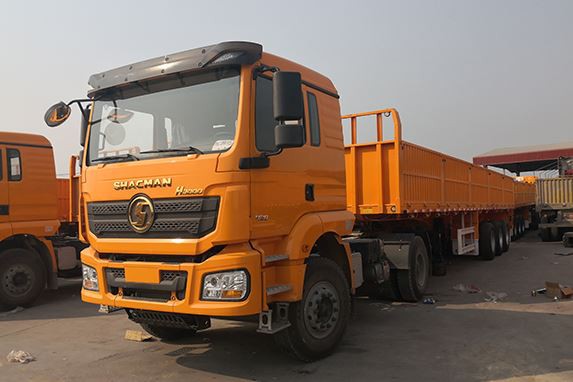

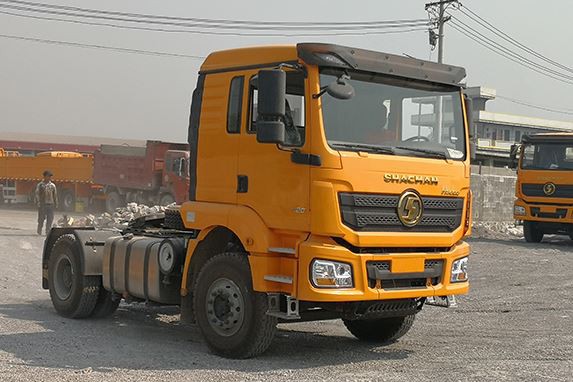

Product Picture
