Name: 6x4 Cement Mixer Truck
Brand: SHACMAN
SKU: 146220893

Product Introduction

6x4 Cement Mixer Truck is a vehicle for rapid mixing of concrete. The interior is also a cylinder with thin ends and thick middle, and there are some clockwise fan blades inside. During the transportation of vehicles from the pump station to the construction site, the tank keeps rotating the fan blades to prevent cement segregation.

6x4 Cement Mixer Truck uses high-quality wear-resistant steel plate to manufacture mixing cylinder and blade, and the manufacturing process of mixing cylinder blade adopts special die stamping. The tank body butt joint and blade welding adopt large rotary tooling with high precision. The hydraulic system adopts imported components with compact structure and excellent performance. The whole vehicle has unique and beautiful shape, compact and reasonable structure. The operating system is flexible, convenient and fast to realize the operation of left and right and feed inlet.

Product feature and application

Easy to operation and maintain, extremely reliable, stable platform. Can carry up to 10 cubic meter mixer.

Product details

●Strong power with large output torque, lower engine speed at maximum torque, best power and explosive force in the industry.

●Equipped with dual intermediate shaft transmission with high reliability, suitable for different working conditions, strong climbing ability and high fuel economy.

●Front and rear multi leaf spring, as well as 4 U-bolts, which is specially designed for heavy-duty transportation.

●Maintenance-free bearing technology with independent lubrication system.

Product parameter

Platform	X3000
Drive type	6X4
Vehicle Weight	GVW：15 tons
	GCW：35 tons

Frame	850×300(8+7)mm
Wheelbase	3775+1400mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 300 PS – 420 PS
		Torque: 1200 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 420 PS
		Torque: 1200 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16 ton single or double reduction
	Gear ratio: 4.769 – 5.92
Suspension	Multi leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	400 - 700 liter aluminum or steel tank
Cab	X3000 Standard
Configuration	Hydraulic driver seat, four point hydraulic suspended cab, electronically controlled automatic constant temperature air conditioner, electric window, manual cab turnover, telescopic shaft control, ordinary air filter, metal bumper, hinged upper pedal, 165ah maintenance free battery, spare tire rack, remote accelerator controller (electronically controlled engine) shipped with the vehicle

▲The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

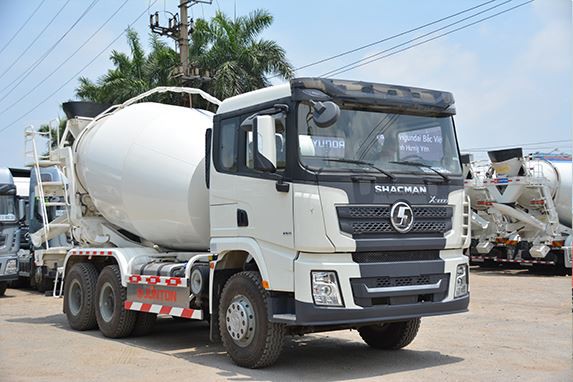

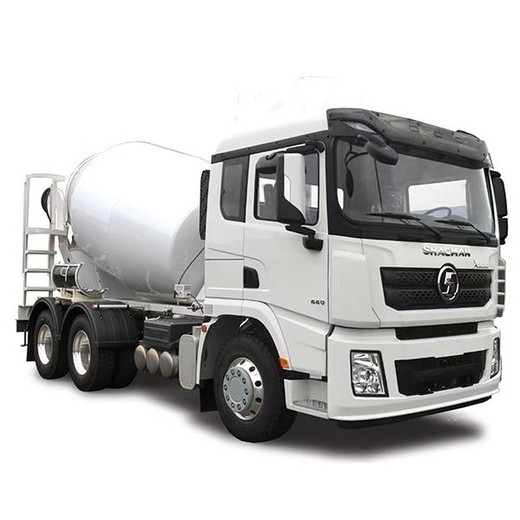

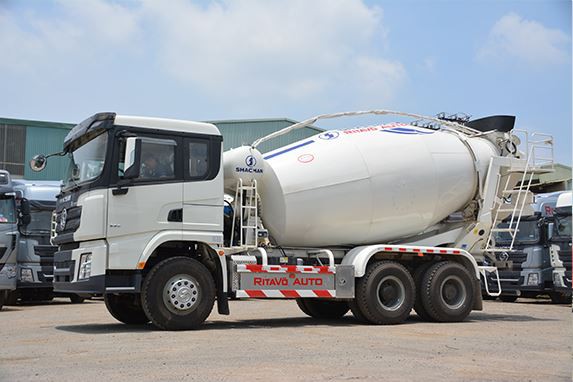

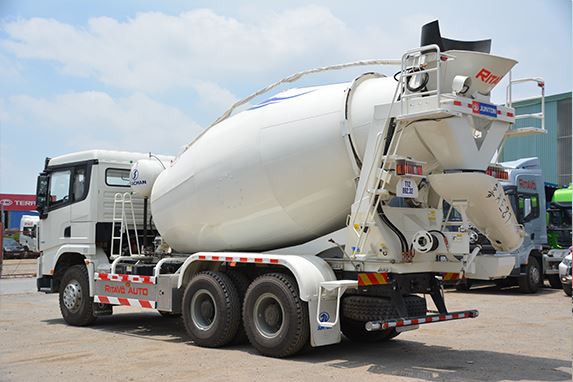

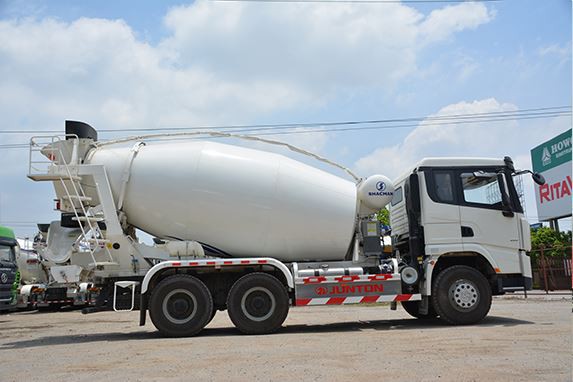

Product Images
