Name: 6x4 Flatbed Tractor Truck
Brand: SHACMAN
SKU: 145366783

Product Introduction

6x4 Flatbed Tractor Truck adopts the longitudinal beam and the overall through-beam group welding into the space frame structure, which can balance the strength, stiffness and toughness of the frame, with strong bearing capacity and no permanent deformation. It has balanced axle load of each shaft and reasonable design of system tie rod angle, which reduces the frictional slippage distance between tires and ground during frequent bumps in operation and effectively reduces tire wear.

Product details

●Combined headlamp of this 6x4 Flatbed Tractor Truck is equipped with integrated design and electric control function, which is easy to maintain, the daytime driving lights make driving safer.
●The front of the cab adopts the European low wind resistance V-SHAPE design. The vehicle is designed with CFD flow field analysis and wind tunnel tests greatly reducing wind resistance

●Three stages hinge type cab pedal. Making entering and exiting the vehicle more convenient and safer for the passengers.

●Vehicle is painted with American FANUC spraying equipment with great corrosion resistance and durability.

Product parameter

Platform	H3000
Drive type	6X4
Vehicle Weight	GVW：8.5 - 9.8 tons
	GCW：50 -100 tons
Frame	(940-850)×300(single 8) mm
	850×300(8+5) mm
Wheelbase	3175+1400 mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2200 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 500 PS
		Torque: 1400 Nm – 2200 Nm
Transmission	FAST 12 or 16 speed manual

Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 7.5 - 9.5 ton
	Rear axle: MAN 13 - 16 ton single or double reduction
	Gear ratio: 3.364 – 4.769
Suspension	Multi or few leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	400 - 1000 liter aluminum or steel tank
Cab	Lengthened high roof
	Lengthened flat roof
	Standard
Standard Configuration	Air suspended driver seat, four point air suspension, rod mirror, electric air conditioner, electric window lifter, manual cab turnover, telescopic shaft control, ordinary air filter, ordinary 50 saddle, corrugated mounting plate, highway bumper, fixed upper pedal, split fender, 165ah maintenance free battery

▲ The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

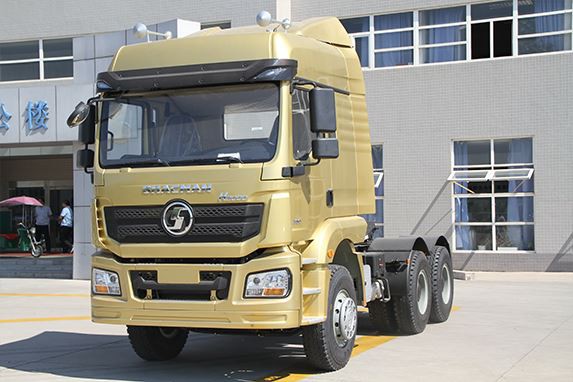

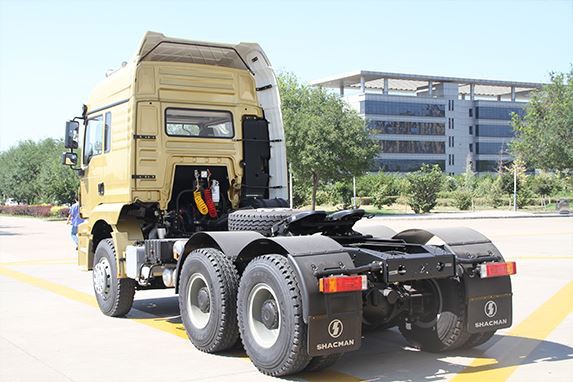

Product Picture
