Name: 8x4 Sprinkler Truck
Brand: SHACMAN
SKU: 145859276

Product Introduction

8x4 Sprinkler Truck has high-quality chassis and engine, 6-speed gearbox, 9.00 steel tire with spare tire, original air conditioner, tax exemption, and the whole vehicle is not overweight or over size. The tank body has a large volume. The tank body is a circular tank. The interior of the tank body is provided with anti-corrosion, the main pipe is galvanized, and the sprinkler is basically configured before flushing and after flushing. A large flow water pump is adopted, the fire interface can flow by itself, and there is a music horn.

8x4 Sprinkler Truck can effectively reduce the concentration of PM10 and PM2.5. It can spray water mist with a height of more than 60 meters and a length of more than 100 meters. The water mist adsorbs, polymerizes and settles with dust particles suspended in the air, so as to achieve the effect of eliminating pollutants and reducing haze. Applicable to urban governance, construction sites, coal terminals, etc.

Product feature and application

Built for city and suburban use, the F3000 sprinkler truck have been used in city sanitation departments in China and around the globe. With high attendance rate, the F3000 sprinkler truck is very reliable and can fulfill the requirements of high usage by its operator.

Product details

● American VISTEON interior utilizing 100% natural negative ion fiber fabric. New material sleeper can promote rest quality.

●Advanced noise isolation technology and strengthened vehicle body structure, and the application of polyester material can reduce cab noise greatly and increase insulation qualities.

● Adjustable steering wheel, which is easy to operate with great man-machine performance.

● The maximum turning angle of the front wheel is 46 degrees, making the vehicle easy to maneuver.

● New generation electrical system: Advanced CAN bus technology from Germany BOSCH with the function of automatic fault detection, the newly upgraded electrical system has been verified by the vehicle market of 12 million kilometers, with stable performance, safe and convenient operation.

Product parameter

Platform	F3000
Drive type	4X2
Vehicle Weight	GVW：10.5 tons
	GCW：50 tons
Frame	850×300（8+5） mm
Wheelbase	1800+4575+1400 mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS –420 PS
		Torque: 1200 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 420 PS
		Torque: 1200 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 7.5 ton
	Rear axle: MAN 13 ton single or double reduction
	Gear ratio: 4.769 – 5.262
Suspension	Multi or few leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	400 - 700 liter aluminum or steel tank
Cab	Lengthened high roof
	Lengthened flat roof
	Standard
Tank capacity	35 cubic meter
Configuration	Hydraulic driver seat, four point hydraulic suspended cab, electronically controlled automatic thermostatic air conditioner, electric window lifter, manual cab turnover, ordinary air filter, 165ah maintenance free battery, metal bumper, hinged upper pedal, spare tire rack

▲The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

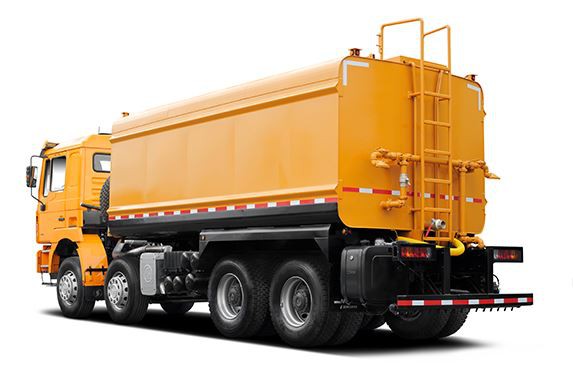

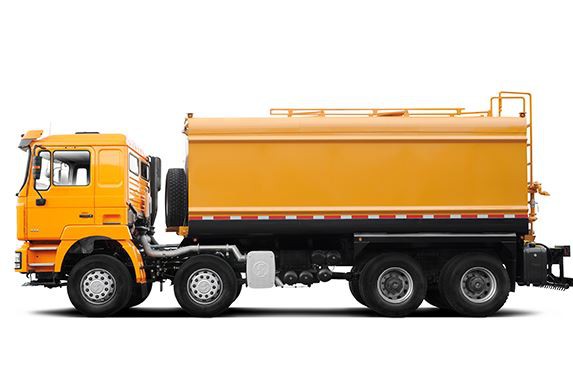

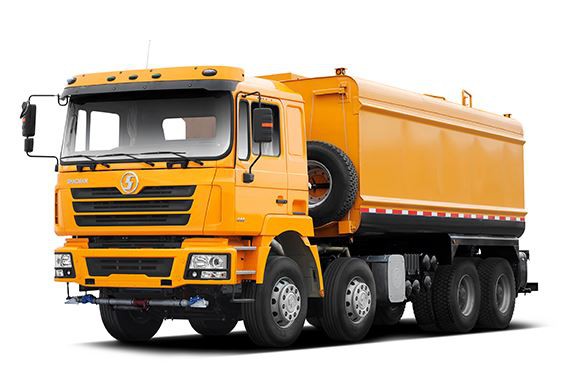

Product images
