Name: 6x4 Flatbed Truck
Brand: SHACMAN
SKU: 144683203

Product Introduction

6x4 Flatbed Truck is light weight of the whole vehicle which can guarantee its anti-twisting, anti-vibration and anti-bumping ability to meet different road carrying capacity. It is also called construction machinery transporter, flatbed truck, trailer, mainly used to transport some non-removable objects like excavator, loader, harvester. Its high load-bearing capacity makes it play an important role in the economic development process.

Product feature and application

6x4 Flatbed Truck effectively reduces the damage to the cargo caused by the vehicle upsetting during the driving process. Its supercharger and the connection between the intake and exhaust pipes must be tight not to leak, if the exhaust pipe and exhaust gas turbine leakage between the supercharger efficiency will be greatly reduced.

Product parameter

Platform	F3000
Drive type	6X4
Vehicle Weight	GVW：8.5 tons
	GCW：40 tons
Frame	850×300（8+5） mm
Vehicle Dimensions	9650～11500×2550×3270mm
Wheelbase	7500～9300 mm
可搭载货箱长度	4375～5775+1400mm
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 300 PS –550 PS
		Torque: 1200 Nm – 2200 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 12 or 16 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 7.5 — 9 ton
	Rear axle: MAN 13 — 16 ton single or double reduction
	Gear ratio: 3.7 – 4.769
Suspension	Multi or few leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	400 - 1000 liter aluminum or steel tank
Cab	Lengthened high roof
	Lengthened flat roof
	Standard
Configuration	Hydraulic driver seat, four point hydraulic suspended cab, common rear-view mirror, electronically controlled automatic constant temperature air conditioner, manual window lifter, manual turnover, common air filter, metal bumper, hinged upper pedal, 165ah maintenance free battery, spare tire rack, SHACMAN logo

▲The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

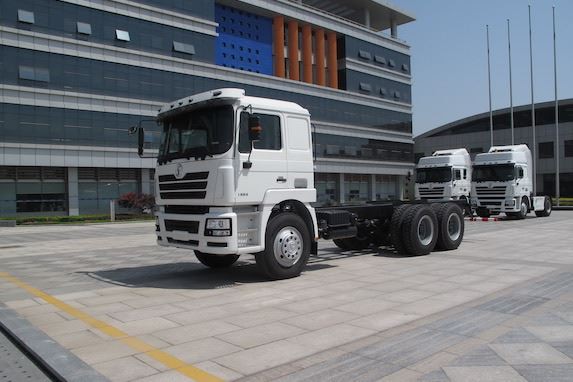

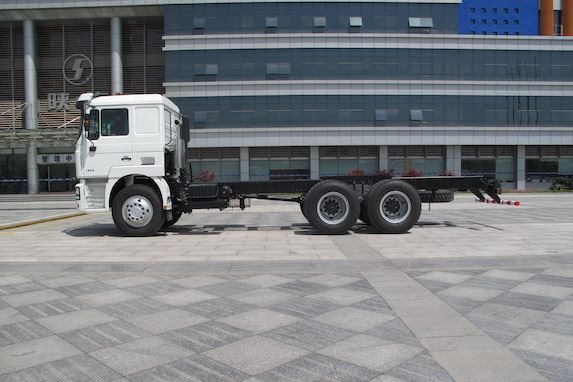

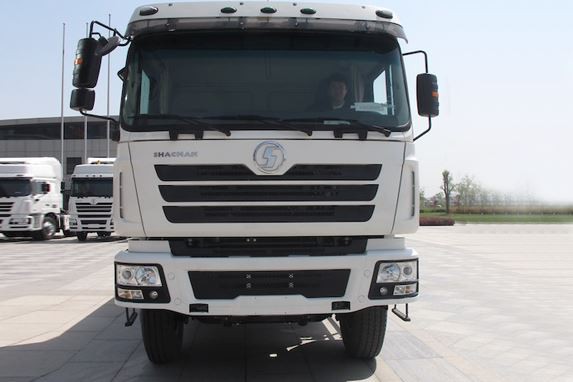

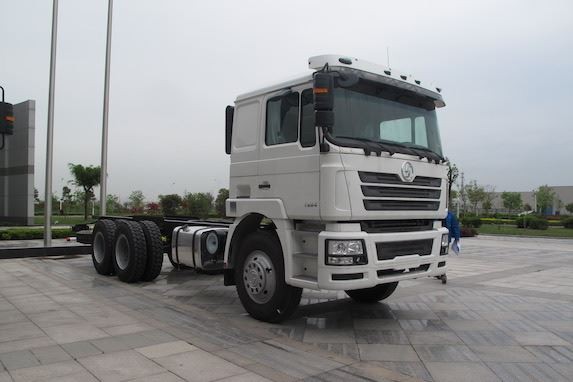

Product Images
