Name: 6x4 Highway Logistics Truck
Brand: SHACMAN
SKU: 198247493

Product Introduction

[Super fuel saving] Received first prize of national science and technology progress for whole vehicle, brand new powertrain, 19 super fuel saving technologies, and the fuel consumption is reduced by 4%.

[Ultra light weight] There are six weight reduction solutions for the whole vehicle, with the weight reduced to as low as 8.35 tons

[Man machine comfort] 3-color fashionable appearance, exclusive color scheme, comparable to 15 super configuration of luxury car, pilot class cockpit.

[Internet smart travel] a new generation of voice control and interaction technology, enjoying the top 10 all-round safe auxiliary driving systems of smart travel.

The X5000 series leads the new era of intelligent driving, and ensure users to enjoy intelligent travel.

Dependability

6x4 dump truck is matched with the outer three-layer frame, and the front extension beam + middle towing hook are casted to improve the bearing capacity
The motion characteristics of wedge mount are accurately calibrated to greatly improve the NVH performance of powertrain accessory system
The suspension support is made of cast steel, the tensile strength is increased by 26.7%, the strength is improved, and the performance in high pressure and low temperature is improved
Four-point wedge suspension + leaf spring auxiliary support structure (SHACMAN patented technology), the structure is stable and reliable, which is conducive to shell protection and sealing
The industry's first maintenance free direct flow air filter, honeycomb filter element, direct air flow in and out, and low air inlet resistance
The heavy-duty dump truck adopts integral reinforced balance shaft assembly + large-diameter through shaft + auxiliary balance shaft, national invention patented technology, the bearing capacity ranks first in the industry and has good adaptability to road conditions

Product Parameters

X5000 Trailer Truck
Drive			4*2	6*4
Vehicle versions			Compound	Light-weight	Compound	Enhanced	Super
GCW(t)			50	55	70	90	120
Main configuration	Cab	Type	Extended high roof/Extended flat roof
		Suspension	Air suspension/Hydraulic suspension
		Seat	Air main seat/Hydraulic main seat
		Air conditioner	Electric automatic constant temperature A/C; Single cooling A/C
	Engine	Brand	WEICHAI&CUMMINS
		Emmission Standards	EURO III/ V/ VI
		Rated Power(hp)	420-560
		Rated Speed(r/min)	1800-2200
		Max torque /Speed range(N.m/r/min)	2000-2550/1000-1500
		Displacement(L)	11-13
	Cluch	Type	Φ 430 diaphragm spring clutch
	Transmission	Brand	FAST
		Shift type	MT(F10/F12/F16)
		Max torque(N.m)	2000 (2400N.m for engines over 430hp)
	Frame	Dimensions(mm)	(940-850)×300 (single-layer 8mm)	(940-850)×300 (single-layer 8mm)	(940-850)×300 (single-layer 8mm)	850×300(8+5)	850×300(8+7)
	Axle	Front axle	7.5t axle	7.5t axle	7.5t axle	7.5t axle	9.5t axle
		Rear axle	13t double-stage	13t single-stage	13t double-stage	13t double-stage	16t double-stage
		Ratio	4.266（3.866）	3.364（3.700）	3.866（4.266）	4.266（4.769）	4.266（4.769）
	Suspension	Leaf springs	F10/R15	F3/R4	F10/R12	F10/R12	F10/R12
	Tire	Type	12R22.5	12R22.5	12.00R20	12.00R20	12.00R20
Performance	Economic/Max speed(km/h)		50-70/100	60-85/110	50-70/100	45-60/95	45-60/95
	Minimum clearance of chassis(mm)		245	245	270	270	270
	Max gradeability		30%	27%	30%	30%	30%
	Saddle height above ground(mm)		1385±20	1320±20	1410±20	1410±20	1420±20
	Front/rear turning radius(mm)		2120/2000	2650/2200	2650/2200	2650/2200	2650/2200
Weight	Curb weight(t)		6.8	8.5	9.2	9.6	9.8
Size	Dimensions(mm)		6150×2490×(3170-3685)	6825×2490×(3155-3660)	6825×2490×(3235-3725)	6825×2490×(3235-3725)	6825×2490×(3255-3745)
	Wheel base(mm)		3600	3175+1400	3175+1400	3175+1400	3175+1400
	Tread(mm)		2036/1860
Basic equipment	Four-point air suspension, electric tilt cab, DRL, electric automatic constant temperature A/C, electric window lifter, electric heated rearview, central locking (dual remote control), multi-function steering wheel
Options	Integral fenders, Telematics, Jost 90 saddle, hydraulic retarder, PTO

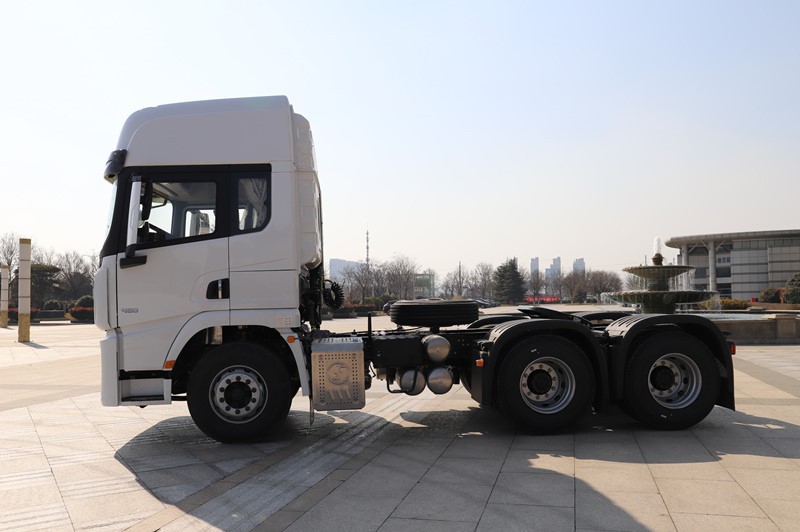

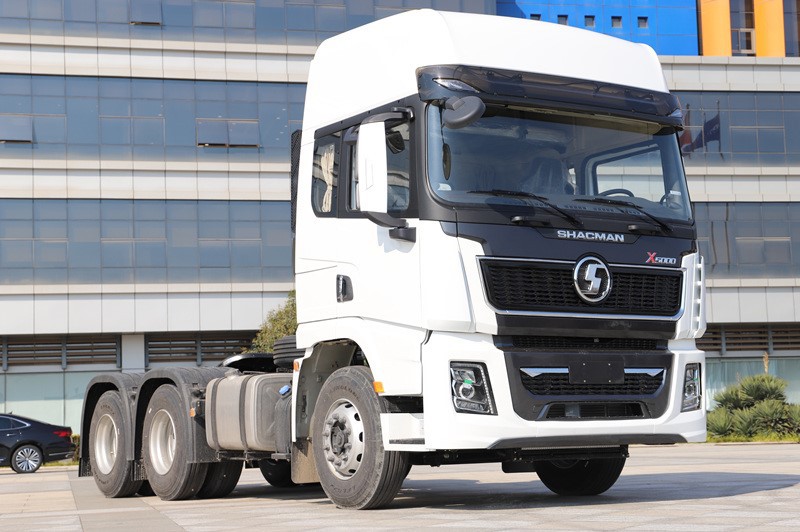

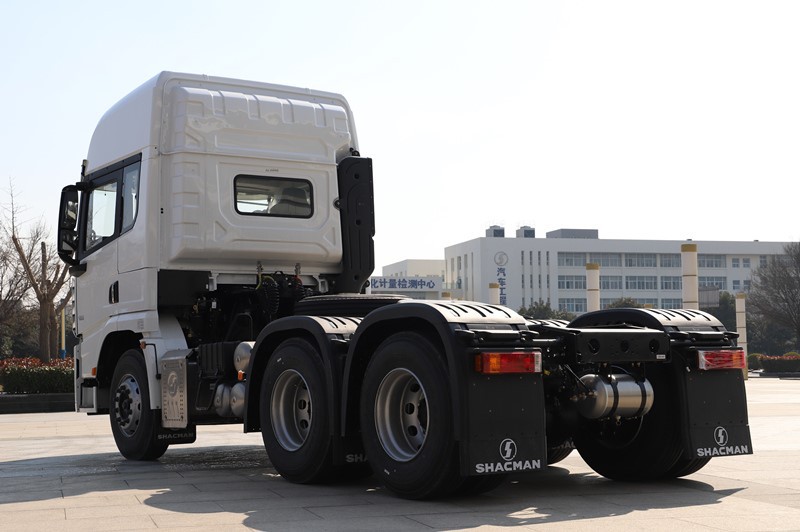

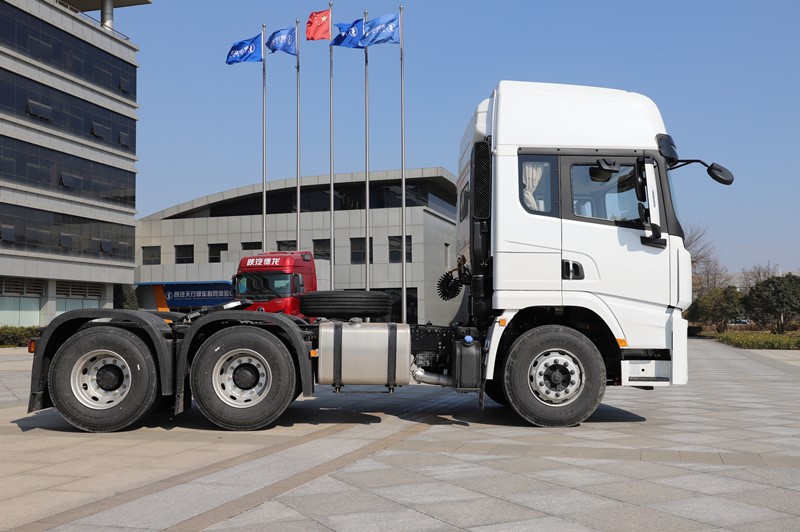

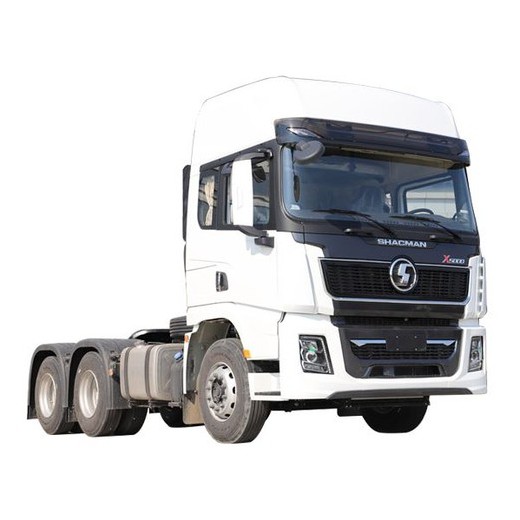

Product Image
