Name: 8x4 City Dump Truck
Brand: SHACMAN
SKU: 145367251

Product Introduction

8x4 City Dump Truck adopts the narrow body cab of the German MAN TGS model, and it has the leading design technology and manufacturing technology of Europe, with better lateral adaptability and trafficability. The H3000 series is great for medium to long distance transportation in and around an urban environment.

Product feature and application

8x4 City Dump Truck is suitable for medium-distance heavy duty transportation. It is mainly used for urban construction, mining, and other areas. With lower curb weight and reinforced chassis design, the H3000 can load more than other competitors, increasing the overall efficiency of the vehicle. The narrow design of the cab allows the vehicle to maneuver through tight spaces.

Product details

●The WABCO silver dryer and water-oil separator two-stage dewater and oil removal protection ensure compressed air drying and cleaning, significantly improve the reliability of brake system, reduce pipeline freezing and congestion.

●Unique inter-axle differential and differential lock are convenient for vehicle maintenance and can improve the transport efficiency.

●German BISS technology cooling module with good heat radiation and adaptability for hot environment, the building block design concept is applied to expansion tank with tighter structure.

●The integration of the whole vehicle pipeline improves the aesthetic and reliability.

●Widening and variable cross section brake shoe with better heat dissipation, braking qualities, and service life.

●8x4 City Dump Truck has reinforced multi-leaf spring and four U-bolts with great rigidity and strong bearing capacity.

Product parameter

Platform	H3000
Drive type	8X4
Vehicle Weight	GCW：70 tons

Frame	850×320(8+7+8)
Wheelbase	1800+3375+1400
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16 ton single or double reduction
	Gear ratio: 4.769 –5.92
Suspension	Multi leaf spring front and rear setup
Tires	315 / 80R22.5
Fuel tank	300 - 700 liter aluminum or steel tank
Cab	Standard
	Lengthened flat roof
Configuration	Hydraulic driver seat, four point hydraulic suspension, no sleeper, rod type rear-view mirror, electric window lifter, electric air conditioner, manual cab turnover, flexible shaft control, ordinary air filter, metal bumper, two-stage boarding pedal, 165ah maintenance free battery, headlamp protective barrier and tail lamp protective barrier

▲The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

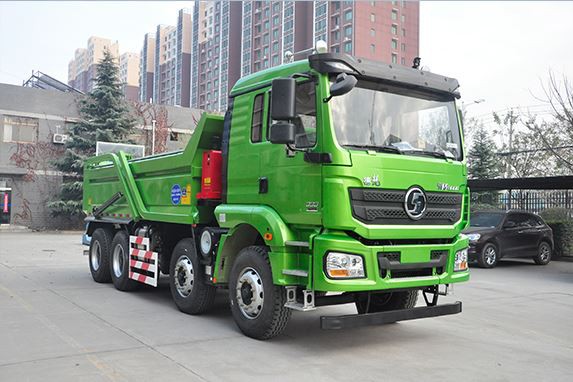

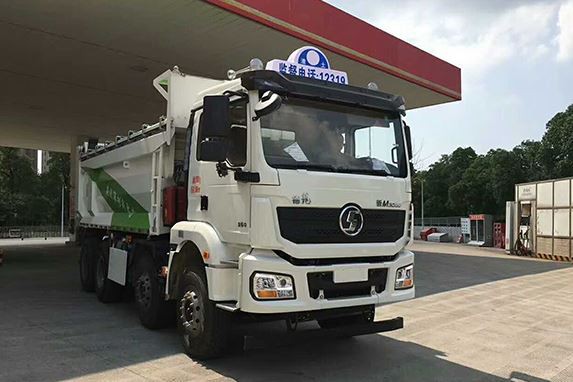

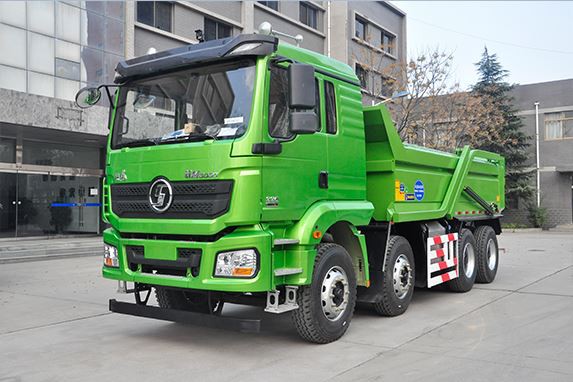

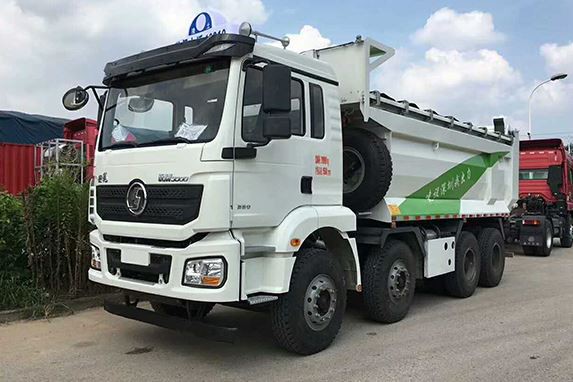

Product Images
