Name: 8x4 Standard Dump Truck
Brand: SHACMAN
SKU: 145581471

Product Introduction

8x4 Standard Dump Truck is made of high-strength steel plate, which makes the vehicle's center of gravity lower, lighter weight, and stronger carrying capacity. This product has been carefully designed and manufactured by us, with strong carrying capacity, long service life, easy procurement of accessories, and easy maintenance. It is one of the best choices for customers.

Product feature and application

8x4 Standard Dump Truck is light in weight and strong in carrying capacity, and is mainly used for the standard transportation of toll roads for medium and short distances such as coal resources, sand and gravel and other infrastructure materials. Our product is suitable for standard coal transportation in areas with strict weight charges.

Product details

● Equipped with anti-swing frame as standard, with good stability when the carriage tilts.

●Its base has been raised to a certain extent to enhance its passing rate through potholes and undulating terrain.

● The whole vehicle is reasonably matched, reliable in use, and you can choose with confidence.

● This truck is equipped with a constant temperature fan, which can effectively reduce noise, reduce the vibration of the diesel engine, and improve driving comfort.

● The interior is equipped with air-conditioning, which can keep you in the most comfortable temperature in hot summer or cold winter.

● The air seat brings you an unprecedented comfortable driving feeling.

Product parameter

Platform	X3000
Drive type	8X4
Vehicle Weight	GVW: 11 tons

	GCW：90 tons
Frame	850×320（8+7）mm
Wheelbase	1800+3575~4375+1400
Engine	Weichai	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
	Cummins	Emissions: Euro II to Euro V
		Displacement: 10L – 12L
		Power: 340 PS – 550 PS
		Torque: 1400 Nm – 2100 Nm
Transmission	FAST 10 or 12 speed manual
Clutch	φ430
Steering gear	ZF8098
Axle	Front axle: MAN 9.5 ton
	Rear axle: MAN 16 ton single or double reduction
	Gear ratio: 4.769 – 5.92
Suspension	Multi leaf spring front and rear setup
Tires	12.00R20
Fuel tank	400 - 700 liter aluminum or steel tank
Cab	Standard
	Lengthened flat roof
Configuration	Hydraulic driver seat, four point hydraulic suspension cab, electrically controlled automatic thermostatic air conditioner, electric window, ordinary rear-view mirror, manual cab turnover, telescopic shaft control, ordinary air filter, metal bumper, hinged upper pedal, water tank protective barrier, tail lamp protective barrier

▲If you have any questions, please feel free to contact us.

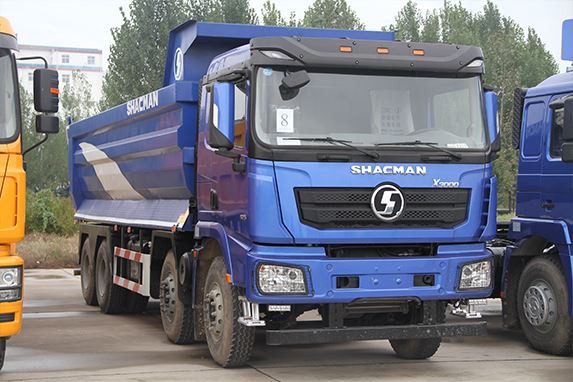

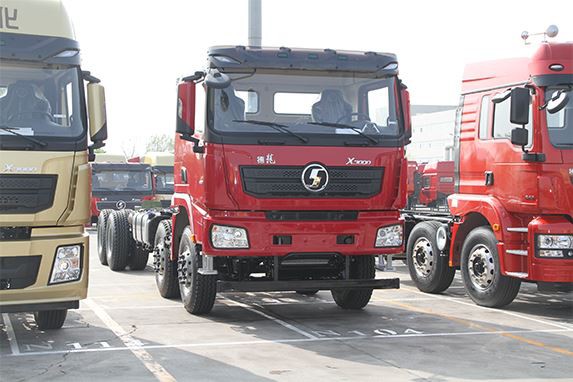

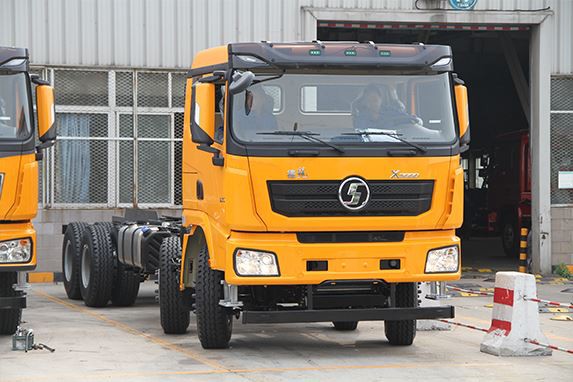

Product Images
