8x4 Off Road Dump Truck
Product Introduction
8x4 Off Road Dump Truck is made of great wear-resistant materials, durable, and the surface is not easy to fade. The truck is equipped with good engines, strong power, efficient and fuel-saving. It is suitable for transportation of coal, sand, gravel and muck, and is suitable for mountain roads, construction site roads, etc., with reliable quality, economic and convenient.
Product feature and application
8x4 Off Road Dump Truck adopts lightweight design and streamlined cab design, which effectively reduces driving resistance and saves fuel. This truck has been verified by destructive experiments, and passive safety has been effectively improved, so customers can choose with confidence.
Product details
● High-quality gearbox, low-speed and high-torque output, providing more traction and better climbing performance.
● The cab is equipped with air-conditioning and a large-screen multi-function steering wheel, making the driving process easy and pleasant.
● The taillights are equipped with protective devices to effectively provide protection and reduce the risk of damage.
● It is matched with 9.5 ton front axle and 18mm front suspension leaf spring to effectively enhance the bearing capacity.
● The three-layer beam of 8×4 dump truck has greatly improved load-bearing capacity and high bending strength.
● The use of flat fuel tanks, optimized placement, further increase the ground clearance and improve its passability.
Product parameter
Platform | H3000 | |
Drive type | 8X4 | |
Vehicle Weight | GCW：70 tons | |
Frame | 850×320(8+7+8) | |
Wheelbase | 1800+3375+1400 | |
Engine | Weichai | Emissions: Euro II to Euro V |
| Displacement: 10L – 12L | ||
| Power: 340 PS – 550 PS | ||
| Torque: 1400 Nm – 2100 Nm | ||
Cummins | Emissions: Euro II to Euro V | |
| Displacement: 10L – 12L | ||
| Power: 340 PS – 550 PS | ||
| Torque: 1400 Nm – 2100 Nm | ||
Transmission | FAST 10 or 12 speed manual | |
Clutch | φ430 | |
Steering gear | ZF8098 | |
Axle | Front axle: MAN 9.5 ton | |
| Rear axle: MAN 16 ton single or double reduction | ||
| Gear ratio: 4.769 –5.92 | ||
Suspension | Multi leaf spring front and rear setup | |
Tires | 315 / 80R22.5 | |
Fuel tank | 300 - 700 liter aluminum or steel tank | |
Cab | Standard | |
| Lengthened flat roof | ||
Configuration | Hydraulic
driver seat, four point hydraulic suspension, no sleeper, rod type
rear-view mirror, electric window lifter, electric air conditioner,
manual cab turnover, flexible shaft control, ordinary air filter, metal
bumper, two-stage boarding pedal, 165ah maintenance free battery,
headlamp protective barrier and tail lamp protective barrier | |
▲The values in the configuration table are subjected to change. The data in the configuration table are for reference only. Mix and matching some configurations may not be technically possible, please contact your local sales representative to help you choose the right specifications for your needs.

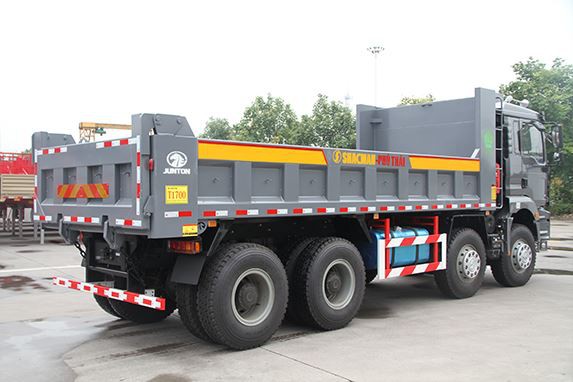

Product Images
 |  |
 |  |
